Essential Components for System Expansion
Accessories
DIN Rail Mounting Kit
The Reliable Controls® MP-DINRAIL™ is a two piece ABS adapter that is custom designed to convert the standard MACH-Pro(Web)Com™, MACH-Pro(Web)Sys™, MACH-ProPoint™, and MACH-Pro1/2™ enclosures to be DIN rail mountable.
Relay Mounting Plate
The RE-WR-MP relay mounting plate is a custom designed relay holder to fit WR-6161 and WR-6172 relays. Each RE-WR-MP has ten relay slots that can easily be separated into whatever quantity is needed.
SS3 Deep Backplate
The SS3 Deep Backplate is an accessory for SMART-Sensor™ and SPACE-Sensor™ Temperature devices that facilitates surface mounting without the need to cut an opening in the wall. The SS3 Deep Backplate is ideal for gas-sensing models and for installations on concrete or other solid surfaces. Available in standard and square models, the SS3 Deep Backplate is designed to fit and cover single-device electrical boxes.
Control Panels
Medium General Control Panel
The Medium General Control Panel is a complete assembly of controls and switching relays wired and ready for installation. Customize the Medium General Control Panel with your choice of controllers, relays and wiring, panel door, and transformer input voltage to meet your lighting control strategy, HVAC, and security needs.
MACH-ProView™ Panel Mount Kit
Seamlessly integrate your MACH-ProView™ controller in an aesthetically pleasing, flush-mounted application with the MACH-ProView Panel Mount Kit. Constructed from durable cold-rolled steel and finished with a high-quality powder coat, the MACH-ProView Panel Mount Kit provides a simple way to install your touchscreen controller on the door of a control cabinet and affords a higher level of environmental protection than the MACH-ProView alone.
Small Lighting Control Panel
The Reliable Controls Small Lighting Control Panel is a complete assembly of controls and switching relays wired for installation in an electrical system. Customize the Small Lighting Control Panel with your choice of MACH‑ProLight controller, relays, wiring, and transformer input voltage to meet your lighting control strategy needs.
Medium Lighting Control Panel
The Reliable Controls Medium Lighting Control Panel is a complete assembly of controls and switching relays wired for installation in an electrical system. Customize the Medium Lighting Control Panel with your choice of MACH‑ProLight controllers, relays, wiring, and transformer input voltage to meet your lighting control strategy needs.
Large Lighting Control Panel
The Reliable Controls Small Lighting Control Panel is a complete assembly of controls and switching relays wired for installation in an electrical system. Customize the Small Lighting Control Panel with your choice of MACH‑ProLight controller, relays, wiring, and transformer input voltage to meet your lighting control strategy needs.
Enclosures

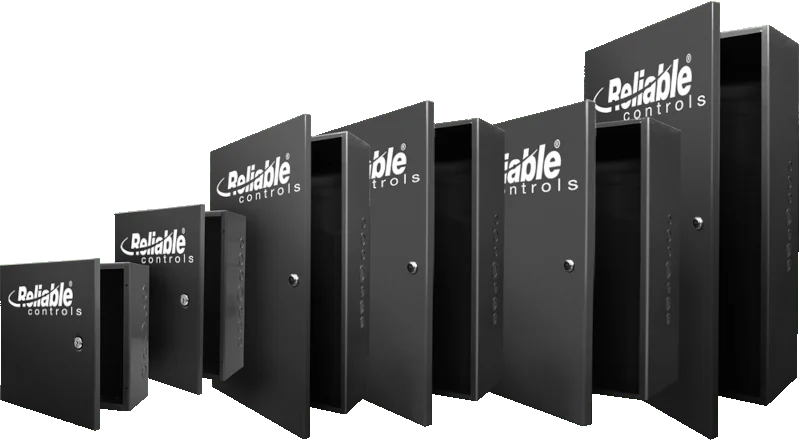

Enclosures
Reliable Controls offers nine enclosures that provide an economical, professional, branded solution for equipment protection. Purpose-built for the controls industry, Reliable Controls enclosures maximize the number of Reliable Controls devices you can accommodate. All enclosures are made from 16-gauge steel and include a key lock, a detachable backplate, and knockouts for conduit entry.
Expansion Modules
MACH-ProPoint™ Input/Output
The MACH-ProPoint™ Input/Output expansion module is a flexible, general purpose accessory that allows you to add modular inputs and outputs to any MACH‑Pro, MACH‑ProWeb, or MACH‑Pro2 series controller.

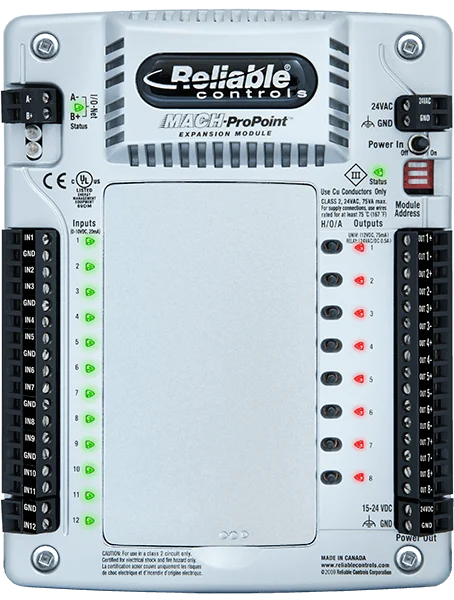

MACH-ProPoint™ Input/Output Universal
The MACH-ProPoint™ Input/Output Universal expansion module is a flexible, general purpose accessory that allows you to add modular universal inputs and outputs to any MACH-Pro, MACH-ProWeb, or MACH-Pro2 series controller.
MACH-ProPoint™ Binary Input
The MACH-ProPoint™ Binary Input expansion module is a flexible, general purpose accessory that allows you to add modular binary inputs to any MACH‑Pro, MACH‑ProWeb, or MACH‑Pro2 series controller.

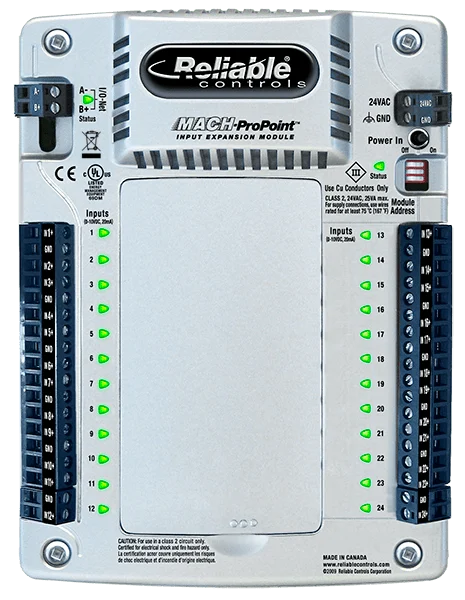

MACH-ProPoint™ Input
The MACH-ProPoint™ Input expansion module is a flexible, general purpose accessory that allows you to add modular inputs to any MACH‑Pro, MACH‑ProWeb, or MACH‑Pro2 series controller.
MACH-ProPoint™ Output
The MACH-ProPoint™ Output expansion module is a flexible, general purpose accessory that allows you to add modular outputs to any MACH-Pro, MACH-ProWeb, or MACH-Pro2 series controller.
SMART-Net™ Expansion Board
For SMART-Net™ devices that use terminal-block connections instead of modular RJ11 connections, the SMART‑Net Expansion Board maximizes both the number of SMART‑Sensor devices you can use and the combined SMART‑Net cable length you can connect to a host controller. Powered externally or by the host controller with 24 VAC or VDC, the SMART‑Net Expansion Board supplies power for up to 16 SMART‑Sensor devices and does not repeat the SMART‑Sensor signal, simplifying field wiring and providing a high degree of flexibility.

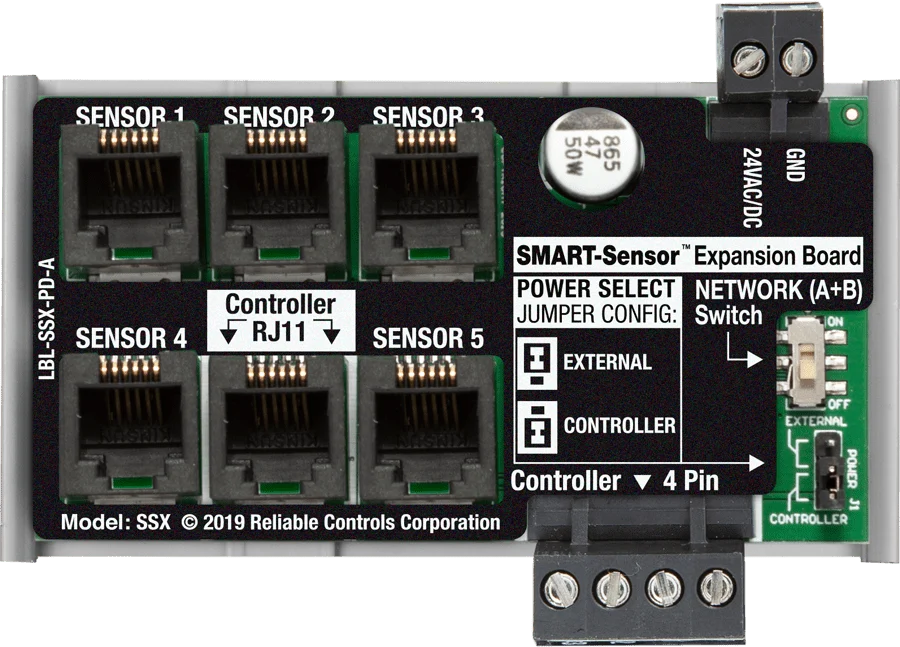

SMART-Sensor™ Expansion Board
For SMART-Net devices that use modular RJ11 connections, the Reliable Controls SMART-Sensor Expansion Board maximizes both the number of SMART-Sensor devices you can use and the combined SMART-Net cable length you can connect to a host controller.
Network
End of Line Terminator
The Reliable Controls Network Accessory End Of Line (NA-EOL) terminator optimizes communication between Reliable Controls devices and devices from other manufacturers that are connected on a common EIA-485 network, using BACnet® or Modbus protocol.
Output Modules
Universal Output Module
Reliable Controls output modules provide simple, flexible, economical output configurations for MACH‑Pro series controllers and expansion modules.

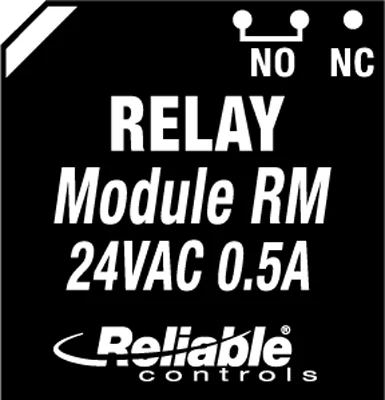

Relay Output Module
Reliable Controls output modules provide simple, flexible, economical output configurations for MACH‑Pro series controllers and expansion modules.

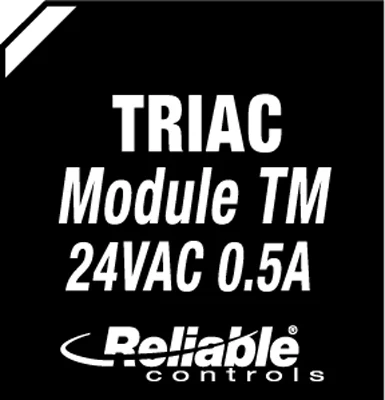

TRIAC Output Module
Reliable Controls output modules provide simple, flexible, economical output configurations for MACH-Pro series controllers.
Power Supply
Power Supply VDC
The Reliable Controls PS-VDC is a compact variable DC power supply designed to power peripheral devices such as pressure transducers, level transducers, and gas monitors.
Power Supply WDC
This wall mounted DC power supply (PS-WDC) provides 9 VDC, 600 mA for SSX, SST with CO2 or OC devices. The PS-WDC comes with a 170 cm (5.5 ft) 22 AWG wire cord.
Power Supply
The 500VA Enclosed Power Supply with 5 Class 2 100VA, 24VAC Outputs is ideally suited to power multiple MACH-System controllers and devices.
24 VAC Transformer
An integral part of all controls installations is the 24 VAC transformer that provides power to the MACH-System controllers and peripherals. Reliable Controls has a quality, cost-effective transformer line for many different power and mounting configurations. Choose from the many models available to suit your application.
Training Cases
Desktop Device Stand
The Desktop Device Stand is a compact, elegant solution for using Reliable Controls controllers in a desktop environment. Designed to be portable, the durable, lightweight aluminum body conceals all wiring and has folding legs for easy shipment or storage. Swap controllers in minutes or test new devices using the built-in terminal blocks and DIN rail. For the technician who needs a system engineering solution for their desk, or the salesperson looking for a simple sales demonstration tool, this cost-effective, professional device stand has many applications.
